CARBON, ALLOY, STAINLESS STEEL FORGED SOCKET WELD FITTINGS SOCKET WELD ELBOW, SOCKET WELD TEE, SOCKET WELD CROSS, SOCKET WELD UNION, SOCKET WELD COUPLING
High Pressure Socket Weld Forged Fittings
| Pressure Class | 3000LBS, 6000LBS, 9000LBS |

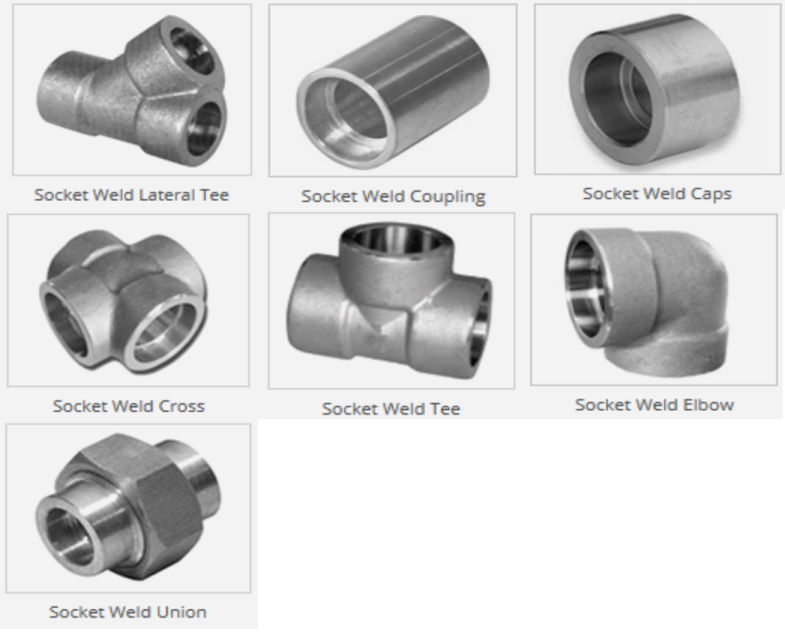

| Products | Elbow 90 Degree, Elbow 45 Degree, Tee, Cross, Union, Coupling, Half Coupling, Cap, Boss, Outlet, Welding Outlet, Insert |
| Dimension Specifications | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8″~4″ (DN6~DN100) |
Forged Pipe Fittings Manufacturing Standards
ASME B16.11 – Forged Fittings, Socket – Welding and Threaded
MSS SP-43 – Wrought and Fabricated Butt-WeldingFittings for Low Pressure, Corrosion Resistant Applications
MSS SP-95 – Swage (d) Nipples and Bull Plugs
BS3799 – Specification for Steel pipefittings, screwed and Socket-welding for the petroleum industry
Forged Socket Weld Stainless Steel Fittings
Stainless Steel – ASTM A182F304, F304L, F316, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H,F316LN, F317,F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTMA312/A403 TP304, TP304L, TP316, TP316L
The material for forged stainless-steel fittings conforms to ASME A182
The dimensions for forged stainless-steel fittings conform to ASME B16.11
Forged Socket Weld Carbon SteelFittings
Carbon Steel ASTM A105, A350 LF2
The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11
