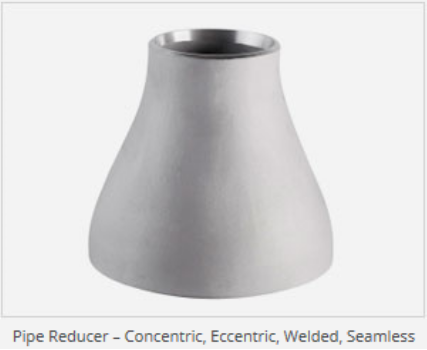

PIPE REDUCER – ECCENTRIC REDUCER CONCENTRIC REDUCER
CARBON,ALLOY, STAINLESS STEEL, COPPER REDUCER
Butt-weld Pipe Reducer Production Range – Concentric & Eccentric
Outside Diameter: SeamlessPipe Reducer （ 1/2″～24″）， ERW / Welded /Fabricated Pipe Reducer （1/2″～48″）
Type: Concentric Reducer , Eccentric Reducer
WallThickness: 3mm– 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80,SCH120, SCH140, SCH160, XXS
ValueAdded Services: HotDipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting,Threading, SolderingProductionGrades: StainlessSteel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel,Cupronickel, Copper
ManufacturingStandards
ASME: ANSIB16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTMA403– ASME SA403 – Standard Specification for Wrought Austenitic Stainless SteelPiping Fittings
ASMEB16.9– Factory-Made Wrought Fittings Butt-weldingASMEB16.25– Butt-welding Ends
ASME B16.28 – ‘Wrought Steel Short Radius Elbows and Butt-weldingReturns
MSSSP-43– ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, CorrosionResistant Applications
Pipe ReducerMaterial Grades
StainlessSteel Reducer;ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
CarbonSteel Reducer:ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
LowTemperature Carbon Steel Reducer: ASTM A420 WPL3, A420 WPL6
Alloy Steel Reducer : ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91Duplex Steel Reducer : ASTM A815, ASME SA 815 UNS NO S31803, S32205.
NickelAlloy Reducer:ASTM / ASME SB 336 UNS 2200 （ NICKEL 200 ）， UNS 2201 （NICKEL 201 ）， UNS 4400（MONEL 400 ）， UNS8020 （ ALLOY 20 / 20 CB 3, UNS 8825 INCONEL （825）， UNS 6600 （INCONEL 600 ）， UNS6601 （ INCONEL 601 ）， UNS 6625 （INCONEL 625）， UNS 10276 （ HASTELLOY C 276 ）
